Class KCumulativeResourceConstraint

java.lang.Object
com.artelys.kalis.KConstraint
com.artelys.kalis.KCumulativeResourceConstraint

public class KCumulativeResourceConstraint extends KConstraint
This constraint states that some tasks requiring a resource do not exceed the
resource capacity. The primary use of this constraint is to express resource
constraints.

Resources (machines, raw material etc) can be of two different types:
- Disjunctive when the resource can process only one task at a time (represented by the class KUnaryResource).
- Cumulative when the resource can process several tasks at the same time (represented by the class KDiscreteResource).

Traditional examples of disjunctive resources are Jobshop problems,
cumulative resources are heavily used for the Resource-Constrained Project
Scheduling Problem (RCPSP). Note that a disjunctive resource is semantically
equivalent to a cumulative resource with maximal capacity one and unit
resource usage for each task using this resource but this equivalence does
not hold in terms of constraint propagation.

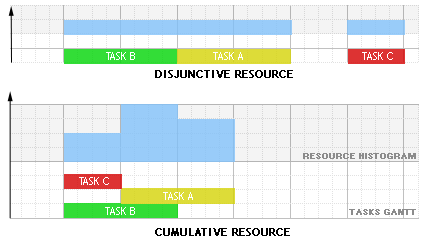

The following schema shows an example with three tasks A,B and C executing on
a disjunctive resource and on a cumulative resource with resource usage 3 for
task A, 1 for task B and 1 for task C :



Since:
2016.1
  • Constructor Details

    • KCumulativeResourceConstraint

      protected KCumulativeResourceConstraint(long cPtr, boolean cMemoryOwn)
    • KCumulativeResourceConstraint

      public KCumulativeResourceConstraint(KProblem p, KIntVarArray starts, com.artelys.kalis.SWIGTYPE_p_KResource_I r, int propagation)
      Constructor for internal use only
    • KCumulativeResourceConstraint

      public KCumulativeResourceConstraint(KProblem p, KIntVarArray starts, com.artelys.kalis.SWIGTYPE_p_KResource_I r)
      Constructor for internal use only
    • KCumulativeResourceConstraint

      public KCumulativeResourceConstraint(KProblem p, KIntVarArray starts, KIntVarArray ends, KIntVarArray durs, KIntVarArray uses, KIntVarArray sizes, int C, int propagation)
      Constructor

      Parameters:
      p - the problem
      starts - the array of variables representing the starts of the tasks
      ends - the array of variables representing the ends of the tasks
      durs - the array of variables representing the durations of the tasks
      uses - the array of variables representing the durations of the tasks
      sizes - the array of variables representing the durations of the tasks
      C - initial resource stock capacity
      propagation - propagation scheme @see KDiscreteResource#PropagationHint
    • KCumulativeResourceConstraint

      public KCumulativeResourceConstraint(KProblem p, KIntVarArray starts, KIntVarArray ends, KIntVarArray durs, KIntVarArray uses, KIntVarArray sizes, int C)
      Constructor

      Parameters:
      p - the problem
      starts - the array of variables representing the starts of the tasks
      ends - the array of variables representing the ends of the tasks
      durs - the array of variables representing the durations of the tasks
      uses - the array of variables representing the durations of the tasks
      sizes - the array of variables representing the durations of the tasks
      C - initial resource stock capacity
      See Also:
      KDiscreteResource#PropagationHint
    • KCumulativeResourceConstraint

      public KCumulativeResourceConstraint(KProblem p, KIntVarArray starts, KIntVarArray ends, KIntVarArray durs, KIntArray prodsidx, KIntVarArray prods, KIntVarArray sizesp, KIntArray consosidx, KIntVarArray consos, KIntVarArray sizesc, int C, int propagation)
      Constructor

      Parameters:
      p - the problem
      starts - the array of variables representing the starts of the tasks
      ends - the array of variables representing the ends of the tasks
      durs - the array of variables representing the durations of the tasks


      C - initial resource stock capacity
      propagation - propagation scheme @see KDiscreteResource#PropagationHint
    • KCumulativeResourceConstraint

      public KCumulativeResourceConstraint(KProblem p, KIntVarArray starts, KIntVarArray ends, KIntVarArray durs, KIntArray prodsidx, KIntVarArray prods, KIntVarArray sizesp, KIntArray consosidx, KIntVarArray consos, KIntVarArray sizesc, int C)
      Constructor

      Parameters:
      p - the problem
      starts - the array of variables representing the starts of the tasks
      ends - the array of variables representing the ends of the tasks
      durs - the array of variables representing the durations of the tasks


      C - initial resource stock capacity
      See Also:
      KDiscreteResource#PropagationHint
    • KCumulativeResourceConstraint

      public KCumulativeResourceConstraint(KCumulativeResourceConstraint toCopy)
      Copy constructor
  • Method Details
